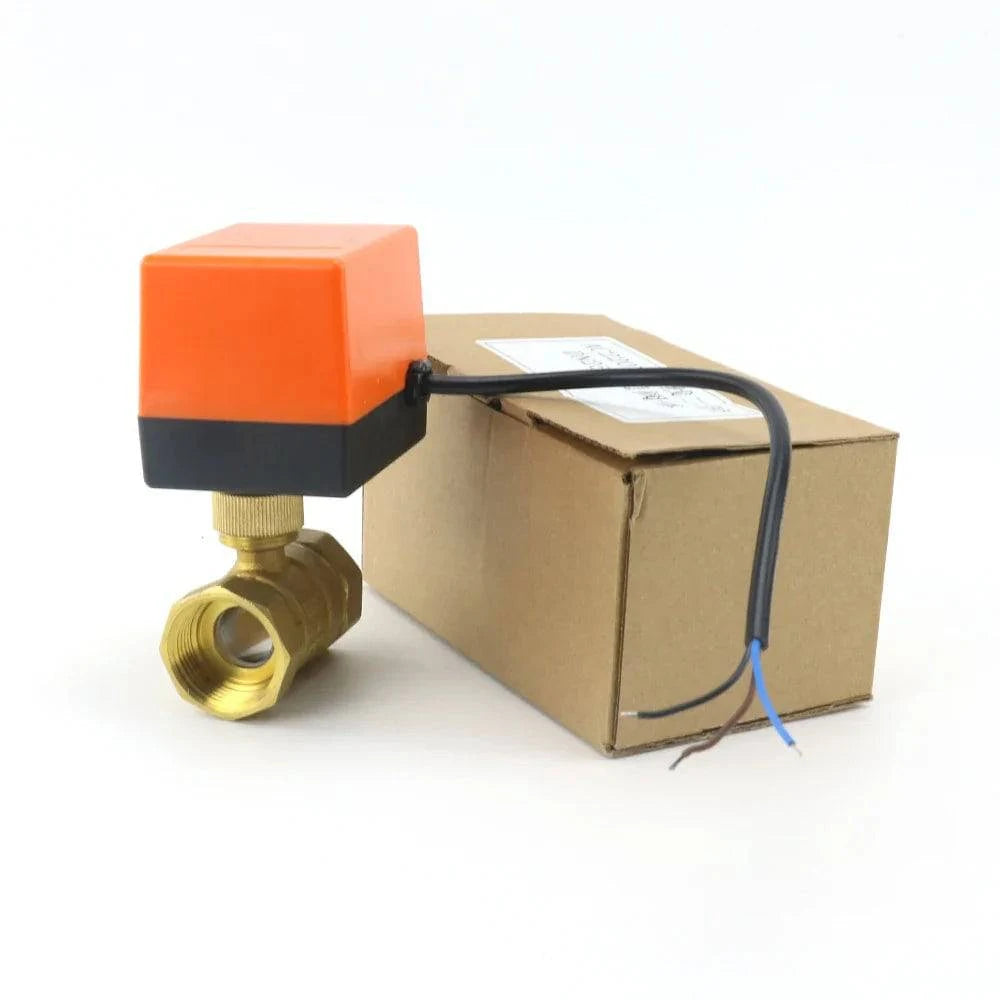

Brass Motorized 2-Way Ball Valve - DN15DN20DN25 Three-Wire Control

The Brass Motorized 2-Way Ball Valve is an efficient and reliable solution for controlling the flow of water in DN15, DN20, and DN25 pipe systems. This valve operates with a three-wire two-control configuration, available in both 220V AC and 12V DC options, making it versatile for various installation needs.

**Product Overview:**

- **Structure**: Ball

- **Port Sizes**: DN15, DN20, DN25

- **Power Source**: Available in AC

- **Media**: Suitable for cold water, hot water, or a 50% glycol solution

- **Material**: Durable brass construction

- **Temperature Range**: Effective for media temperatures between 0-95℃

- **Pressure Rating**: Designed for low-pressure applications, with a nominal pressure of 1.6 MPa

- **Actuator Mechanism**: Features a manual control option with instructional guidance

- **Wiring Mode**: Three-wire, facilitating straightforward electrical connection

- **Action Time**: Fast actuation time between 5-15 seconds

- **Connection Type**: G Female thread

This motorized ball valve is specifically designed for seamless operation. It consists of a valve body and an actuator that rotates the valve core by 90 degrees, driven by a synchronous motor equipped with built-in limit contacts. These contacts ensure that the valve stops power when fully open or fully closed, enhancing safety and durability.

The valve's straightforward construction and dependable functionality make it suitable for applications in heating systems, central air conditioning, solar water heating, and water treatment systems, providing effective control for both cold and hot water.

**Package Includes**: 1 Motorized Ball Valve

This valve is a practical alternative to traditional solenoid valves, offering large straight-through flow and energy efficiency. Ideal for various environmental settings, this product is certified CE, ensuring compliance with safety and quality standards.
