HABOTEST HT206 Clamp Meter - 600A DCAC Multimeter for Voltage Capacitance Ohm Testing

Introducing the HABOTEST HT206 Series AC Digital Clamp Meter, a versatile tool designed for measuring AC/DC currents up to 600A and voltages up to 600V. This intelligent digital clamp meter incorporates a comprehensive set of features to enhance your measurement tasks, ensuring efficiency, safety, and reliability.

**Key Features:**

1. **Intelligent Anti-Burn Protection:**

The HT206 offers full-range intelligent protection to prevent damage from excessive input, providing high precision, stable performance, and a robust design that ensures safety and durability.

2. **Non-Contact Voltage Detection (NCV):**

Available in HT206B/D models, this function enables safe current detection for maintenance tasks without direct contact, promoting operational safety.

3. **Patented Tong Head Design:**

The innovative design of the clamp head is the result of extensive research and development, yielding a practical and efficient tool tailored for ease of use.

4. **Safety Alerts with Orange Backlight:**

The orange backlight activates automatically when voltage exceeds 80V or current surpasses 3A, serving as a visual reminder to maintain safety during your work.

5. **Low Impedance Voltage Measurement:**

This feature minimizes the risk of erroneous readings often caused by phantom voltages, ensuring you obtain accurate measurements.

6. **Line On-Off Measurement:**

Determine the status of a circuit—whether it is on, off, or short-circuited. The current resistance value is conveniently displayed during this measurement.

7. **Capacitance Measurement:**

Capable of measuring various types of capacitance, this clamp meter is highly applicable for out-of-office maintenance in diverse scenarios.

8. **Low Z Low Impedance Voltage Measurement:**

The HT206D model includes this function, further reducing the likelihood of incorrect readings due to false voltages.

9. **Temperature Measurement:**

Equipped with a K-type thermocouple temperature probe, the meter allows for precise contact temperature measurements.

**Specifications:**

- **Brand:** HABOTEST

- **Weight:** 400g

- **Dimensions:** 193 x 73 x 34 mm

- **Operating Temperature Range:** 0°C - 40°C

- **Measuring Current Range:** 0-600A

- **Display Type:** Digital Only

- **Measuring Voltage Range:** 0-600V

- **Measuring Resistance Range:** 0-60MΩ

- **Certificates:** CE, RoHS

- **Measuring Capacitance Range:** 4nF, 40nF, 400nF, 4μF, 40μF, 400μF, 4mF

- **Model Number:** HT206

**Package Includes:**

- **HT206A:**

- 1 x HT206A Clamp Meter

- 1 x English Manual

- 1 x Carry Bag

- 2 x Detection Probes

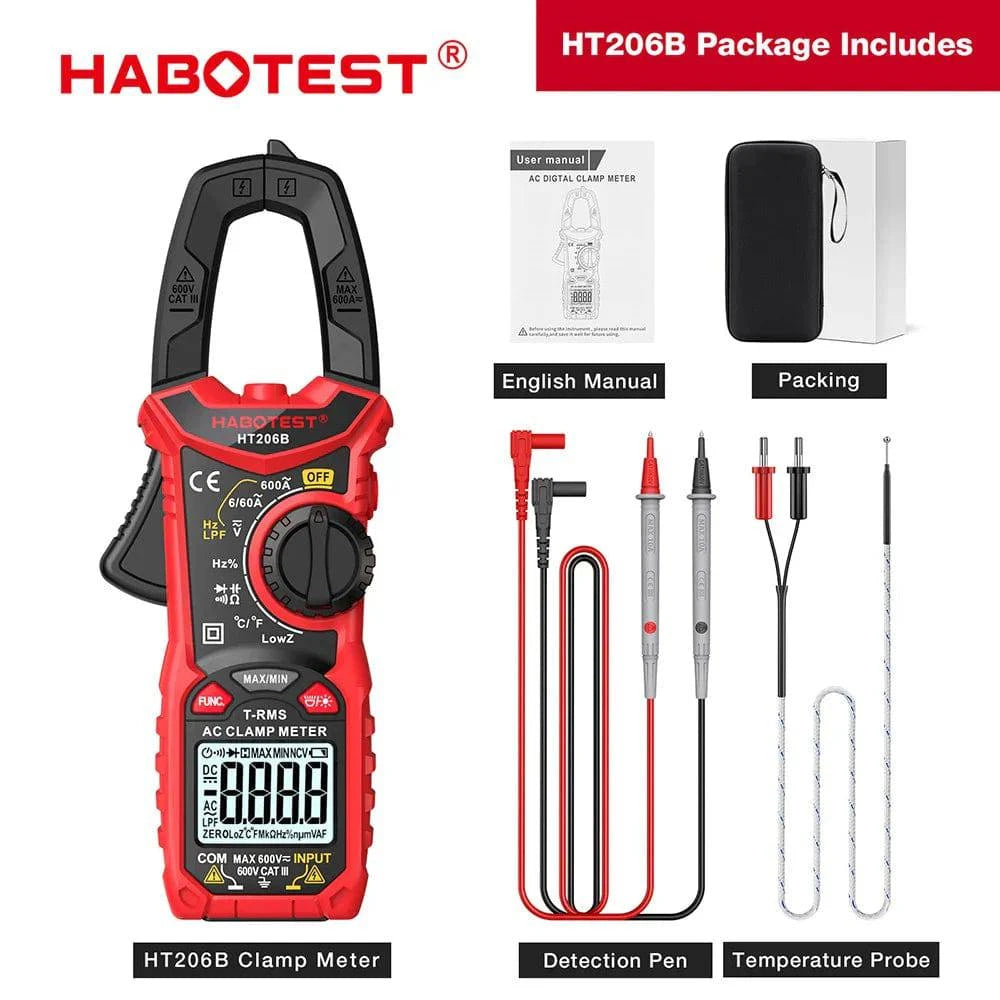

- **HT206B:**

- 1 x HT206B Clamp Meter

- 1 x English Manual

- 1 x Carry Bag

- 2 x Detection Probes

- 1 x Temperature Probe

- **HT206D:**

- 1 x HT206D Clamp Meter

- 1 x English Manual

- 1 x Carry Bag

- 2 x Detection Probes

- 1 x Temperature Probe

**Notes:**

1. Please allow for slight variations of 1-3mm due to manual measurement.

2. The actual color of the item may vary due to differences between monitors. Your understanding is appreciated.

Experience the reliability and precision of the HABOTEST HT206 Series Clamp Meter for your voltage, capacitance, and ohm testing needs.
