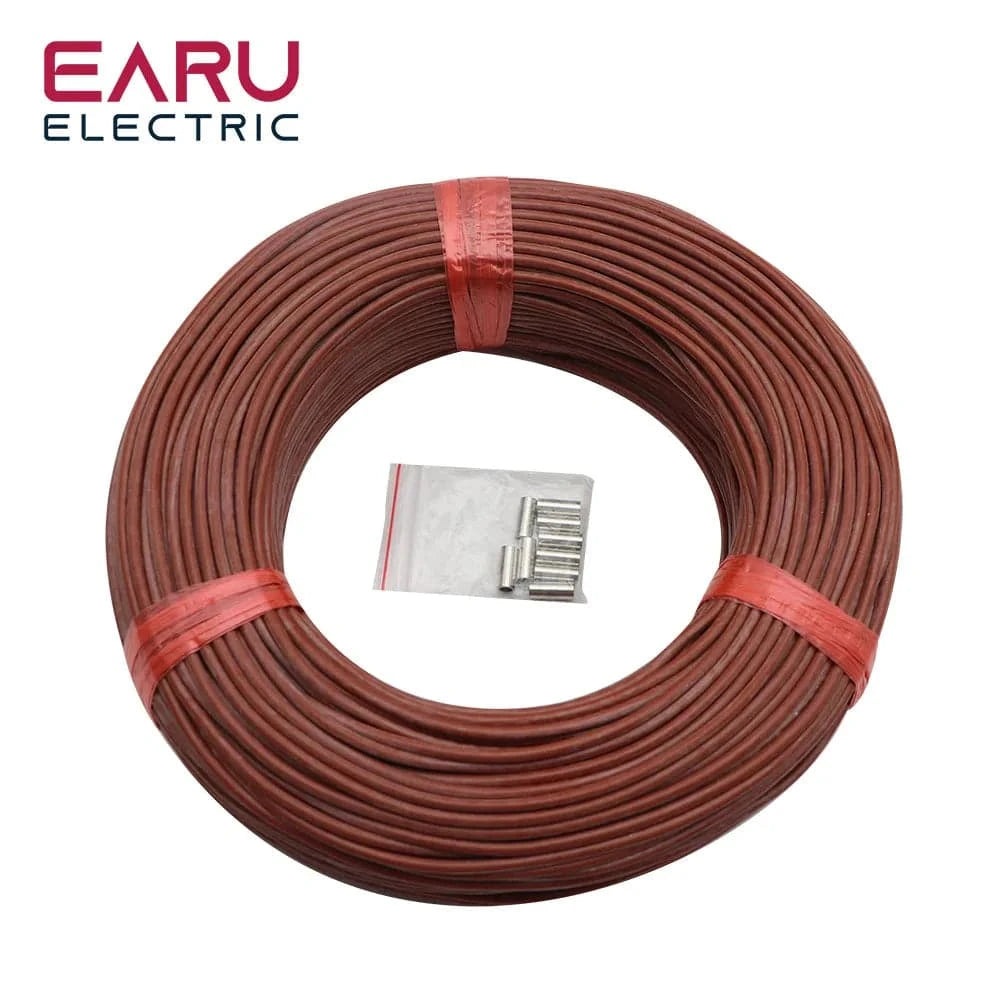

Infrared Heating Cable - 5-100m Electric Carbon Floor Wire 12K 33ohmm 30mm Fiber Thickness

Introducing the 5-100 Meters Infrared Warm Floor Cable, designed for efficient electric heating with a 12K carbon fiber core. This high-quality heating wire features a resistance of 33±10% Ω/m, providing reliable thermal performance for your flooring needs.

Specifications:

- **Conductor Resistance**: 33±10% Ω/m

- **Infrared Wavelength**: 8μm - 18μm

- **Color**: Red

- **Diameter**: 3±0.1 mm

- **Maximum Power Rating**: 25W/m

- **Leakage Current**: 0.05 mA/m

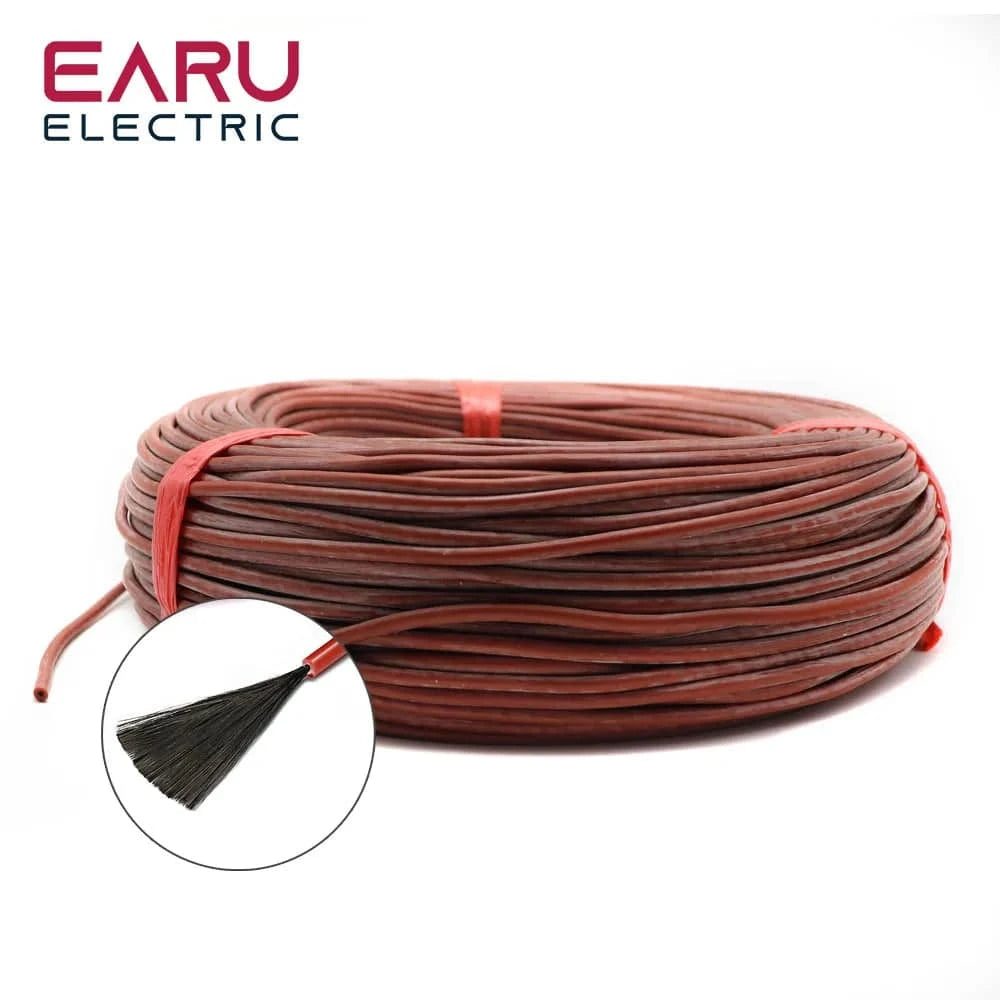

- **Heating Conductors**: 12K

- **Heating Temperature**: Varies with length used

- **Maximum Enduring Temperature**: Up to 200 degrees Celsius

- **Insulating Material**: Silicone rubber

**Heating Power & Temperature Guide**:

The power of the cable varies based on the length used. The approximate temperature outputs are as follows:

- For 5W/m: Heating temperature is about 30-40°C

- For 10W/m: Heating temperature is about 40-50°C

- For 15W/m: Heating temperature is about 50-60°C

- For 20W/m: Heating temperature is about 60-70°C

- For 25W/m: Heating temperature is about 70-90°C

Please note that these temperatures are approximate and can vary depending on testing conditions.

**Power Calculation**:

To determine the power, use the formula:

Power = Voltage² ÷ (Length × Resistance)

For example, with 15 meters of 12K carbon fiber cable on 220V:

- Power = 220V × 220V ÷ (15m × 33Ω) = 100W

- Power per meter = 100W ÷ 15m = 6.66W/m

For 10 meters:

- Power = 220V × 220V ÷ (10m × 33Ω) = 150W

- Power per meter = 150W ÷ 10m = 15W/m

**Specifications**:

- **Brand**: EARU

- **Core Size**: 12K

- **Outer Jacket Material**: Silicone Rubber

- **Voltage Range**: 7~300 V

- **Model Number**: AG-12K

- **Power Density**: 150W/m²

- **Certification**: CE

- **Type**: Floor Heating Parts

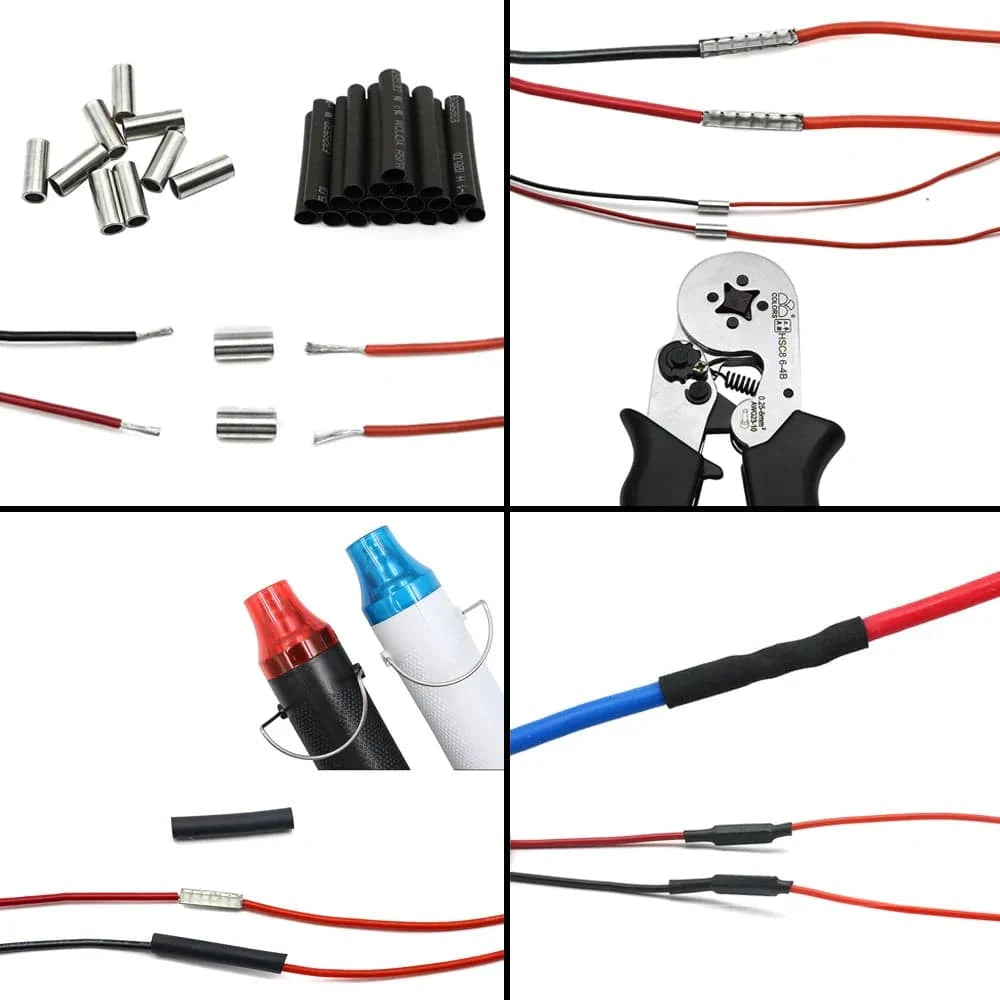

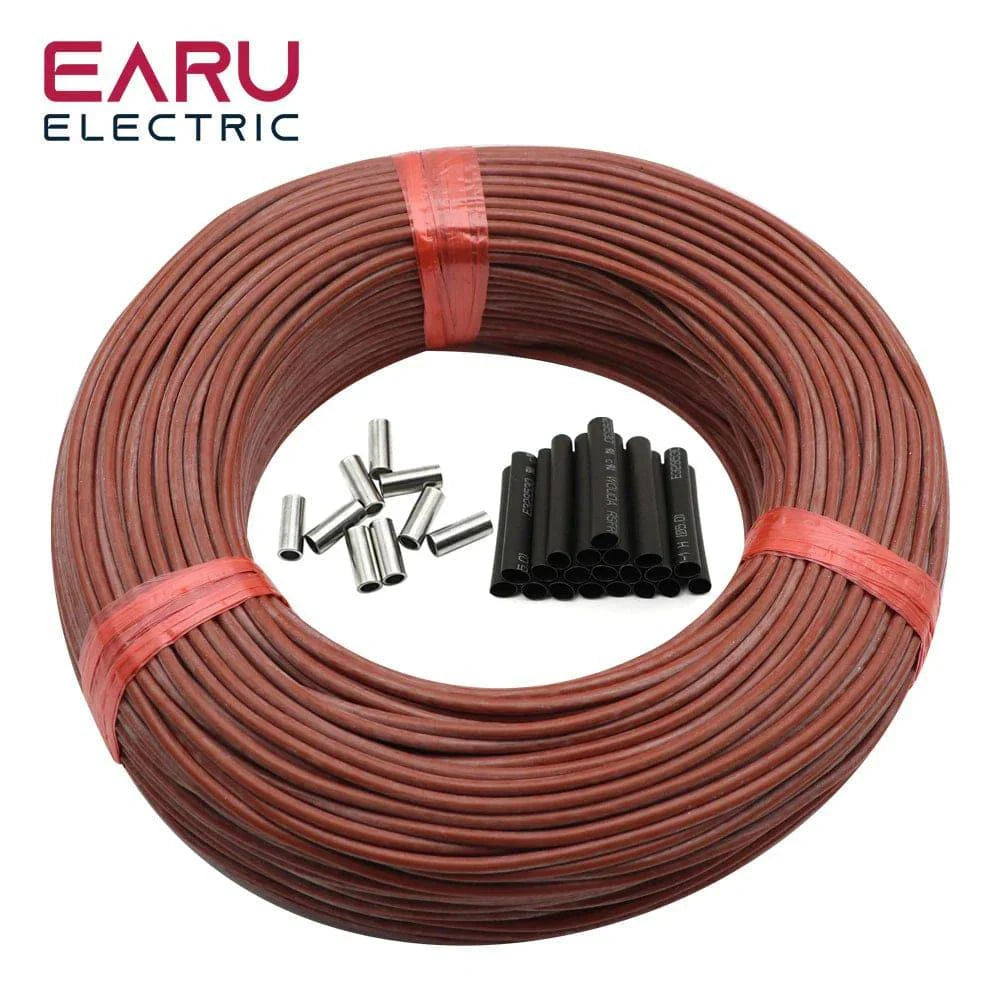

**Package Options**:

- 10m: Includes 10m cable, 2 copper tubes, 2 sleeves

- 15m: Includes 15m cable, 4 copper tubes, 4 sleeves

- 20m: Includes 20m cable, 4 copper tubes, 4 sleeves

- 30m: Includes 30m cable, 6 copper tubes, 6 sleeves

- 40m: Includes 40m cable, 8 copper tubes, 8 sleeves

- 50m: Includes 50m cable, 10 copper tubes, 10 sleeves

- 60m: Includes 60m cable, 12 copper tubes, 12 sleeves

- 70m: Includes 70m cable, 14 copper tubes, 14 sleeves

- 80m: Includes 80m cable, 16 copper tubes, 16 sleeves

- 90m: Includes 90m cable, 18 copper tubes, 18 sleeves

- 100m: Includes 100m cable, 20 copper tubes, 20 sleeves

**Note**:

1. The actual color of the item may differ slightly from the images due to different monitor settings and lighting conditions.

2. Please allow a measuring deviation of 1-2 cm due to manual measurement.
