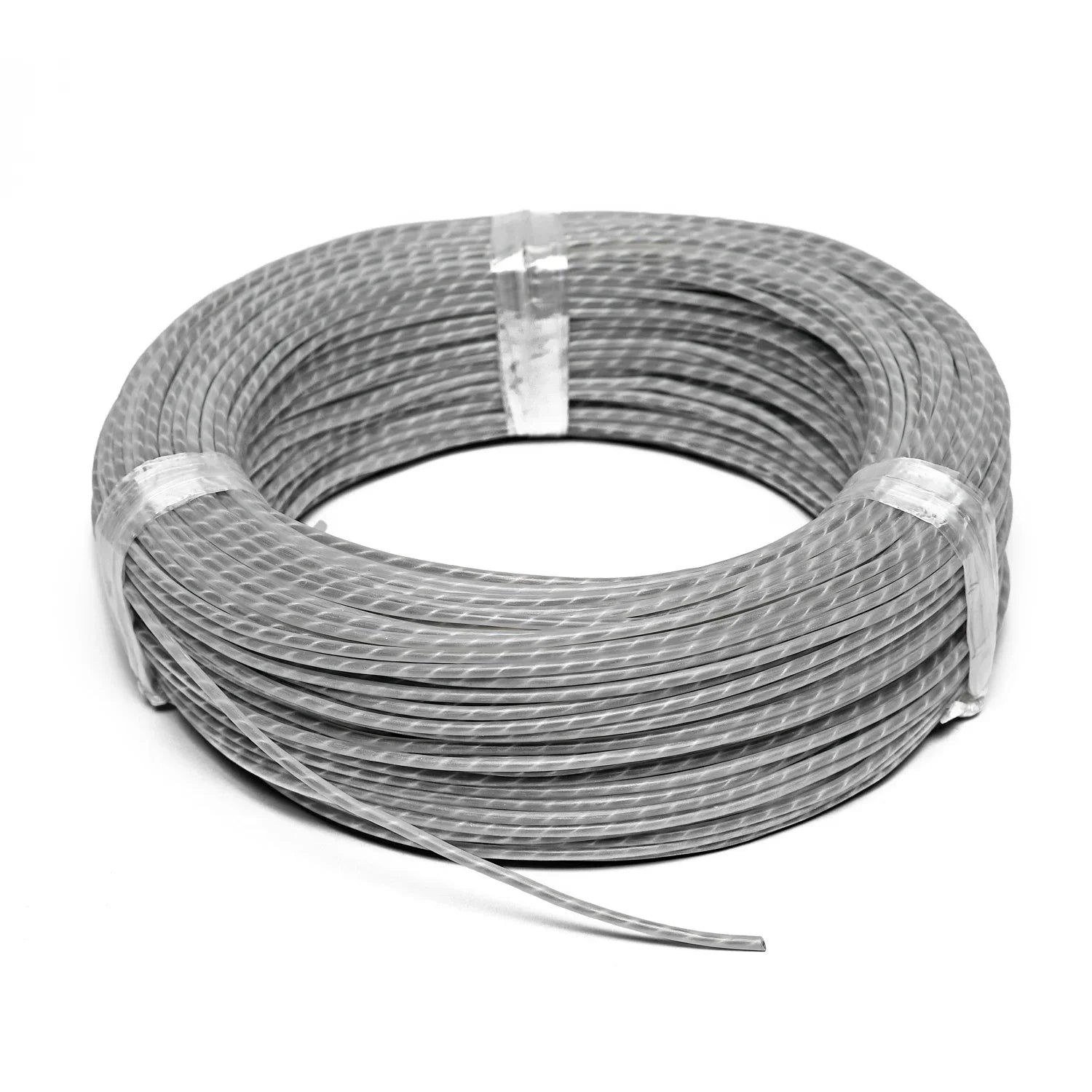

Upgraded 100m Carbon Electric Heating Cable - Transparent Floor Heating Wire 12K 33 OhmM

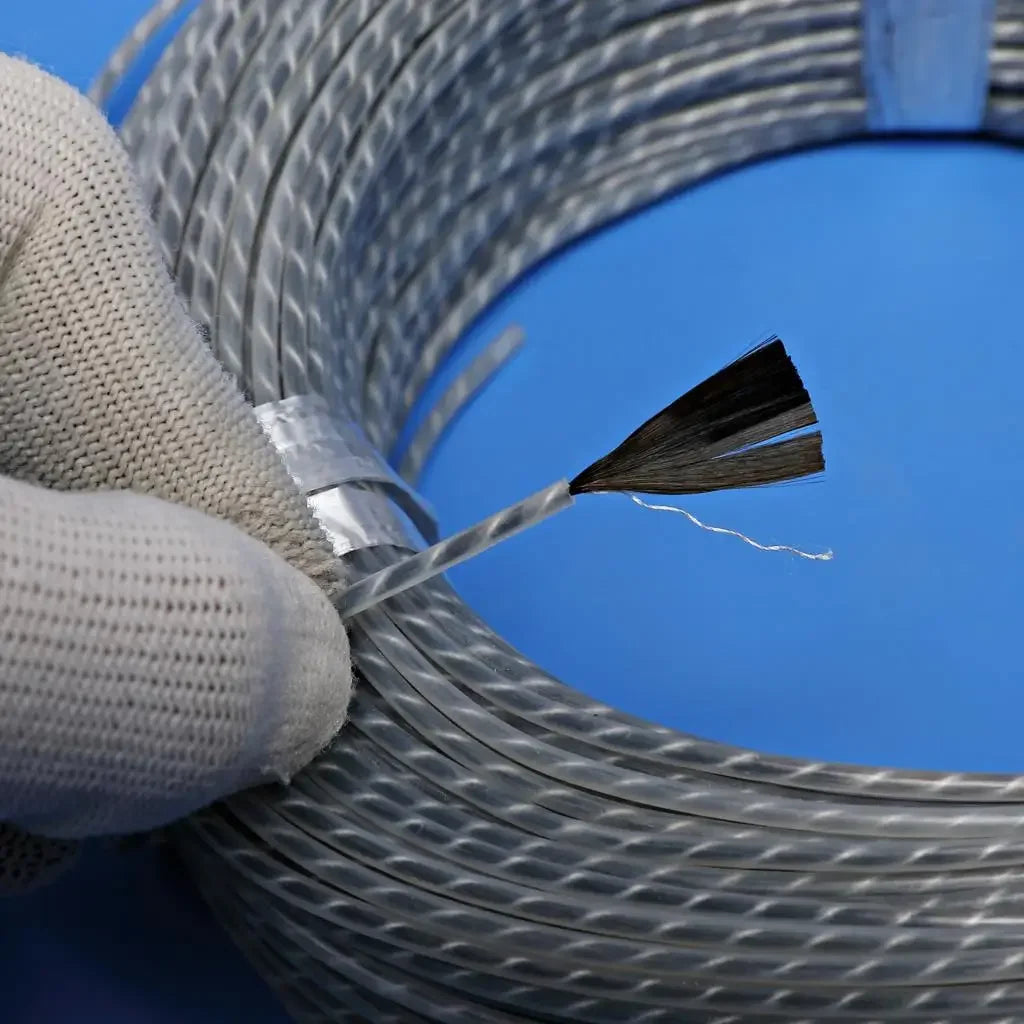

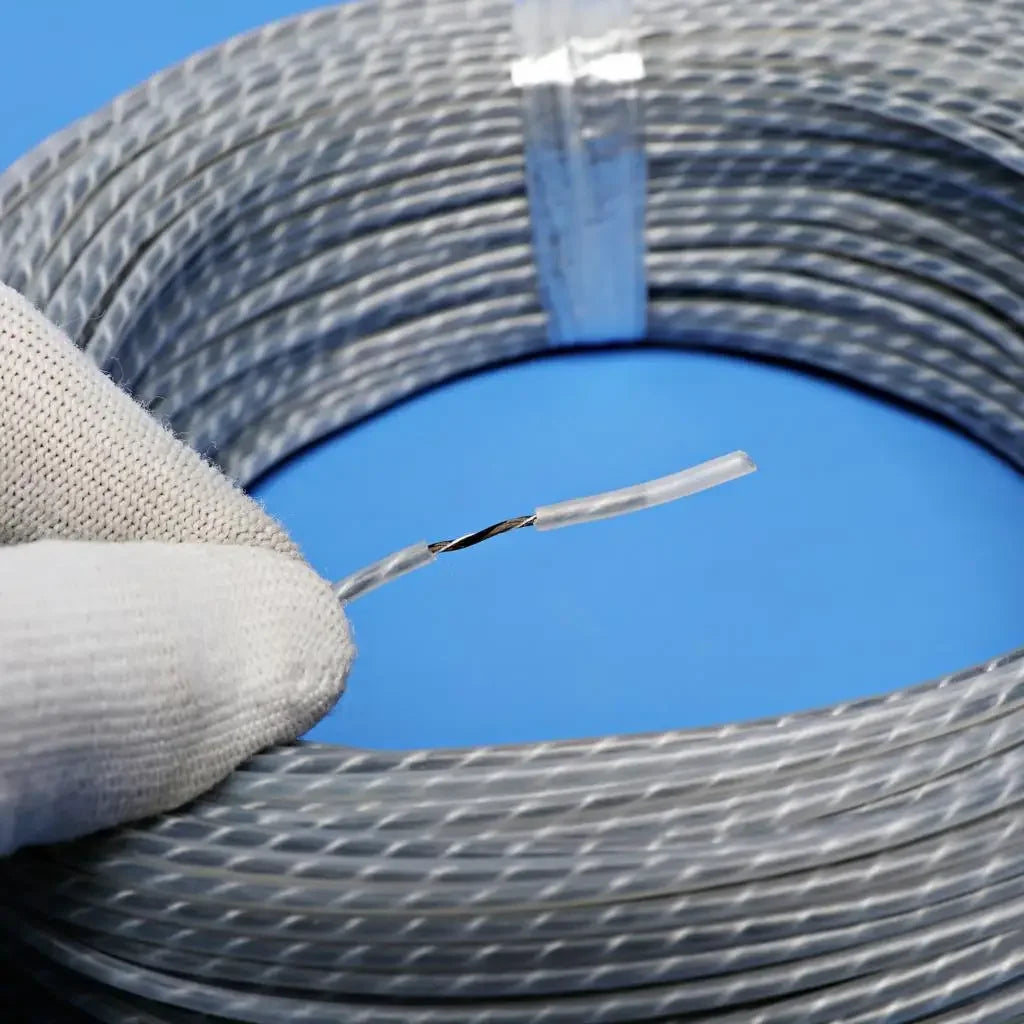

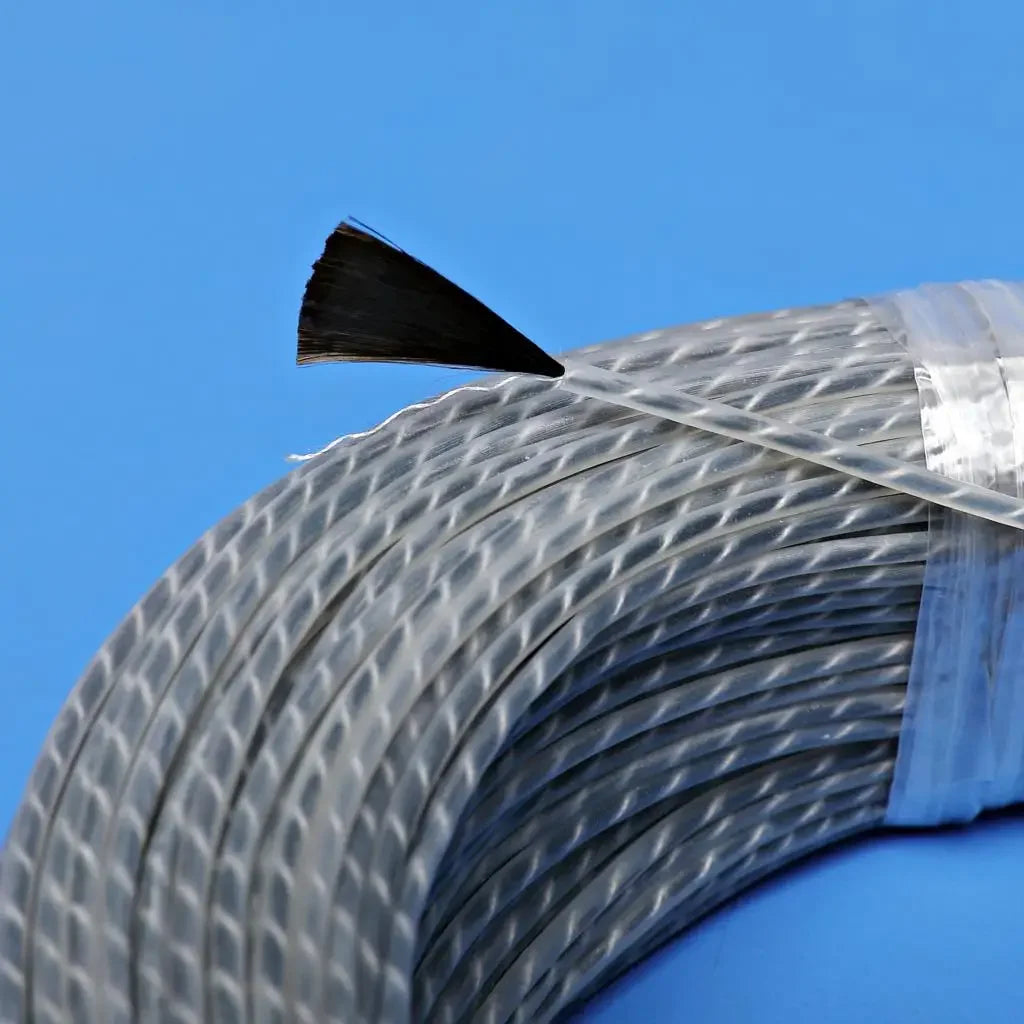

Introducing our upgraded 100m carbon electric heating cable, designed specifically for transparent floor heating applications. This high-quality heating wire features an advanced carbon fiber construction, providing efficient warmth for any space.

**Product Details:**

- **Product Name:** Carbon Fiber Heating Wire

- **Insulating Material:** Silicone Rubber

- **Maximum Enduring Temperature:** 200°C

- **Heating Conductor:** 12K

- **Leakage Current:** 0.05mA/m

- **Maximum Power Capacity:** 25W/m

- **Diameter:** 2.3 ± 0.2 mm

- **Color:** Red

- **Infrared Wavelength:** 8μm - 18μm

- **Conductor Resistance:** 33 ± 10% Ω/m

**Specifications:**

- **Material:** PERT

- **Power Output:** 150W/m²

- **Voltage:** 220V

- **Type:** Floor Heating Systems

- **Model Number:** WYT-12

- **Certification:** CE

**Power Calculation:**

To determine the power output of the heating cable, use the formula:

Voltage × Voltage ÷ Resistance = Electric Power

For example:

- Using 10m of 12K carbon fiber cable at 220V results in:

220V × 220V ÷ (10m × 33Ω) = 150W

- Using 15m of the same cable at 220V produces:

220V × 220V ÷ (15m × 33Ω) = 100W

As cable length increases, power output and heating temperature decrease.

**Heating Temperature Reference:**

- Power 5W/m: Approx. 30-40°C

- Power 10W/m: Approx. 40-50°C

- Power 15W/m: Approx. 50-60°C

- Power 20W/m: Approx. 60-70°C

- Power 25W/m: Approx. 70-90°C

Note that these values are approximations and may vary based on testing conditions.

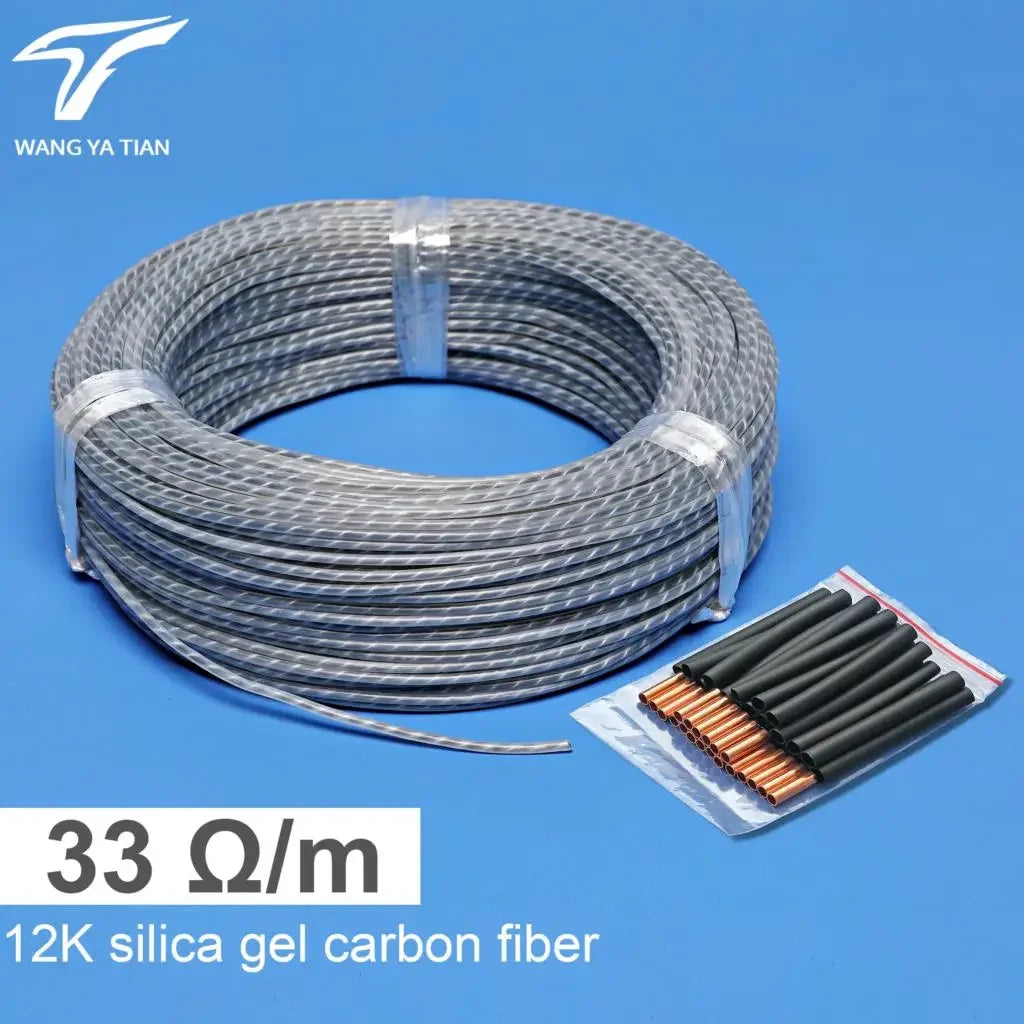

**Package Includes:**

- **100m Purchase:** 100m cable, 20 pcs copper tubes, 20 pcs sleeves

- **50m Purchase:** 50m cable, 10 pcs copper tubes, 10 pcs sleeves

- **30m Purchase:** 30m cable, 6 pcs copper tubes, 6 pcs sleeves

- **20m Purchase:** 20m cable, 4 pcs copper tubes, 4 pcs sleeves

- **15m Purchase:** 15m cable, 4 pcs copper tubes, 4 pcs sleeves

- **10m Purchase:** 10m cable, 2 pcs copper tubes, 2 pcs sleeves

**Important Notes:**

1. The actual color of the cable may differ slightly from the images due to lighting and monitor variations.

2. Please allow a measuring deviation of 1-2 cm due to manual measurement.

Experience efficient heating and comfort with our carbon electric heating cable, perfect for enhancing your floor heating system.
